Good Penetration Epoxy Concrete Crack Sealer For Structural
Strengthening
Concrete Crack Repairing Grout Epoxy
Crack Repair Grouting adhesive
Good Penetration Epoxy Concrete Crack Sealer For Structural
Strengthening
Mainly used for concrete crack grouting,reinforcement of beam,
floor, repairing,pole and basement of building, bridge and roadway. It is two
components injection adhesive, mainly with modified epoxy resin and
can be hardened at room temperature.
Range of Application
Repairing the hollow parts of the wall and ground of cement and
mortar, ceramics and stones Crack repairing for the concrete
buildings, such as prefabricated components, equipment, silos,
reservoirs, dams, bridges, tunnels, pipes, concrete pavement.
Repairing and reinforcement of the concrete crack on outer and
inner walls, roof, beam, pole and floor.
Features
- Effectively seal the crack and improve the durability of concrete;
- After curing has excellent toughness and impact resistance;
- Easy to handle, short maintenance period with reliable quality.
- Waterproof, corrosion resistance, ageing resistance;
- Low viscosity, fluidity, can be applied to cracks smaller than
0.05mm;
Product performance

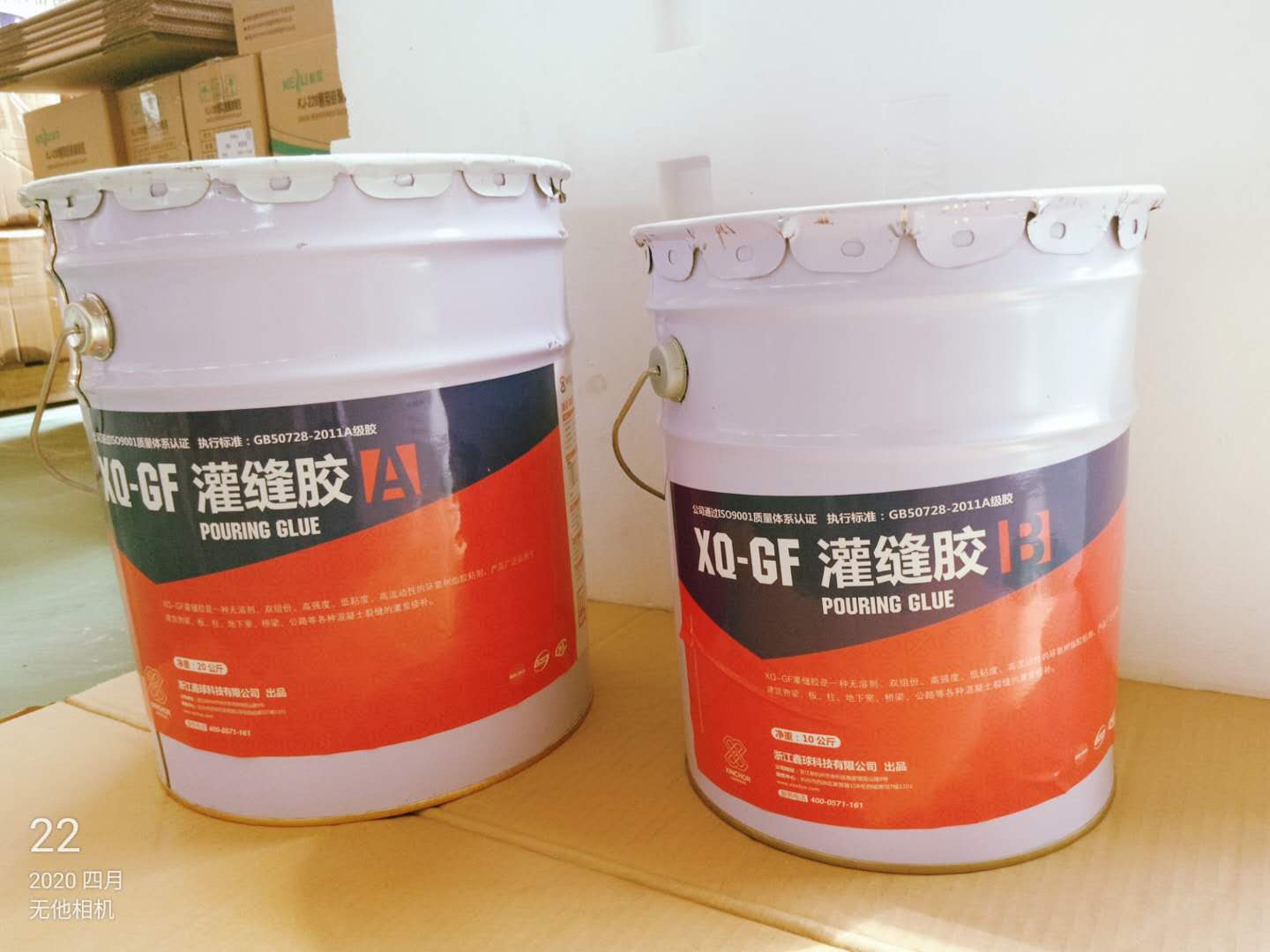

Appearance
Part A (main): transparent liquid
Part B (hardener): brown transparent liquid
Handling time (25℃): ≥30min
Hardening time: 3 hours
Shelf time: 24 months
Mixing viscosity: 120-500 Pa.s
Hardened density: 1.10 +/- 0.10g/cm3
Mixing ratio (weight): 2:1
Product Performance
1 Main Performance
| Testing | Testing condition | Index |
| Gel Performance |
| Tensile strength | Tested under (23±2)℃,(50±5)% RH upon 7 days maintenance after processing | ≥25 MPa |
| Pulling modulus of elasticity | ≥1.5×103 MPa |
| Elongation | ≥1.7% |
| Bending strength | ≥30 MPa no broken damage |
| Compressive Strength | ≥50 MPa |
| Bonding Ability |
| Steel-steel tensile shearing strength | Maintenance for 7 days after processing, tested under (23±2)℃,
(50±5)% RH condition | ≥15 MPa |
| Steel-steel docking tensile strength | ≥20 MPa |
| Non volatile content (solid) | | ≥99 % |
Processing Flow
Crack confirmation and marking
Crack treatment
Seal the crack and fix the injection gun base
Mix the adhesive according to the ratio
Low pressure injection
Hardening and maintenance
The interval setting according to the crack width as blow:
Crack width (mm) | Interval (mm) |
| Min. | Standard | Max. |
| 0.05-0.2 | 150 | 200 | 250 |
| 0.2-3.0 | 250 | 300 | 350 |
Packaging and Logistics
1. Two components packed separately, the mixing ratio is 2:1
2. Shall be stored in cool (under 25℃), dry and ventilated place,
no exceed 1 year.
3. This product is not a dangerous goods, can be shipped as normal
chemical materials.
Attention
Shall be stored in cool, dry and ventilated place, avoid sun
exposure and high temperature
Do not mix too much at each time, use upon actual necessary
If touched by skin, clean with acetone and washed by water
immediately
