XQ-FF31 Hi-Mod Gel High-modulus, high-strength, structural, epoxy
paste adhesive
Concrete Crack Repairing Grout Epoxy
Crack Repair Grouting adhesive
XQ-FF31 Hi-Mod Gel High-modulus, high-strength, structural, epoxy
paste adhesive
Features with high hardness, excellent Polish, strong adhesion,
fast curing, easy to bond with the substrate such as concrete,
stone, steel. Is a modified epoxy, initial adhesiveness.
Usage
Structural bonding of concrete, masonry, metals, wood, etc. to a
maximum glue line of 1⁄8 in. (3 mm).
Grout bolts, dowels, and pins.

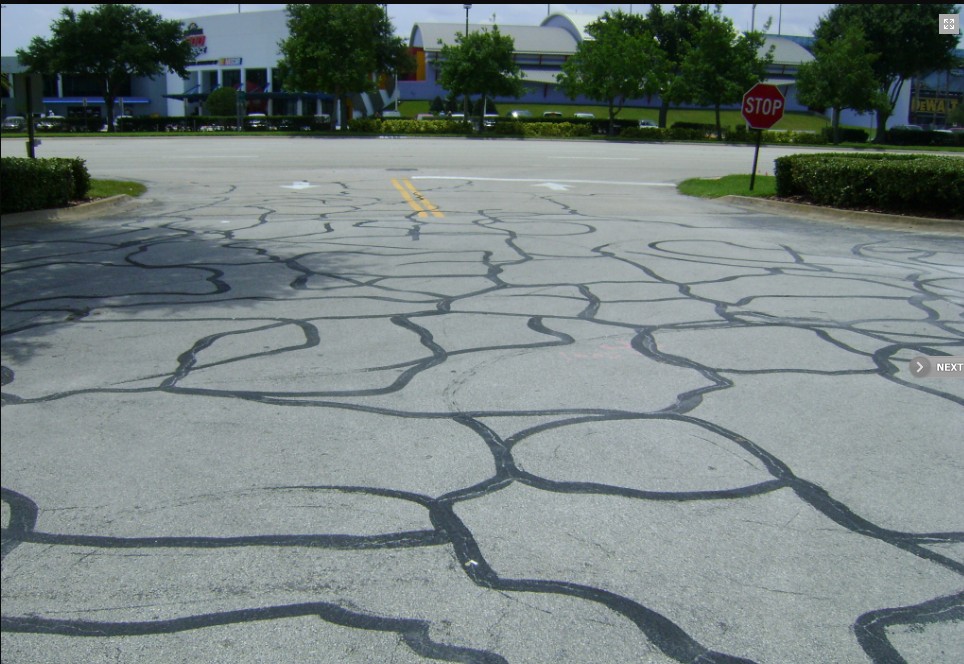

Seals cracks and around injection ports prior to pressure-injection
grouting.
Interior, vertical, and overhead repair of concrete as an epoxy
mortar binder.
As a pick-proof sealant around windows, doors, lock-ups etc. inside
correctional facilities.
Advantages
Meets physical requirements of China National Standard.
Excellent adhesion to concrete, masonry, metals, wood, and most
structural materials.
Paste consistency ideal for vertical and overhead repair of
concrete.
Fast-setting and strength-producing adhesive.
Convenient easy mix ratio A:B = 3:1 by volume.
Product performance
Basic parameters
1) Appearance
Part A (main): Grey Gel
Part B (hardener): Beige Gel
2) Mixing ratio (weight): 3:1
3) Handling time (25℃): ≥30min
4) Hardening time: 3 hours
5) Shelf time: 24 months
Product Performance
1 Main Performance
| Testing project | Standard | Result |
| Gel Performance according to GB50728-2011 standard | |
| Tensile Strength (MPa) | ≥30 Mpa | 33.8 Mpa |
| Tensile modulus of elasticity (MPa) | ≥3200 Mpa | 4194 Mpa |
| Elongation | ≥1.2 % | 1.27 % |
| Bending Strength (MPa) | ≥45 Mpa (no fragment damage) | 55.2 Mpa |
| Compressive Strength (MPa) | ≥65 | 73.2 Mpa |
| Bonding Capacity according to GB50728-2011 standard |
| Steel-Steel Tensile Shear Strength (MPa) | ≥15 Mpa | 18.0 Mpa |
| Steel-Steel bonding tensile strength (MPa) | ≥33 Mpa | 34.7 Mpa |
| Steel-Steel T-peeling strength (MPa) | ≤25mm | 13.7mm |
| Steel to C45 Concrete cohesive pulling strength (MPa) | ≥2.5 Mpa (Concrete cohesion damage) | 3.3 Mpa |
| Heat transform temperature | ≥65 ℃ | 68.4 ℃ |
| Non-volatile content | ≥99 % | 99.5 %
|
Processing Flow:
Crack marking
Surface treatment
Embedding the injector
Sealing with adhesive
Sealing inspection
Mixing crack grouting adhesive
Low pressure injection
Hardening
Inspection
Packaging and Logistics
1. Two components packed separately, the mixing ratio is 3:1
2. Shall be stored in cool (under 25℃), dry and ventilated place,
no exceed 2 year.
3. This product is non dangerous goods, can be shipped as normal
chemical materials.
Attention
Shall be stored in cool, dry and ventilated place, avoid sun
exposure and high temperature
If touched by skin, clean with acetone and washed by water
immediately
Do not mix too much at each time, use upon actual necessary
