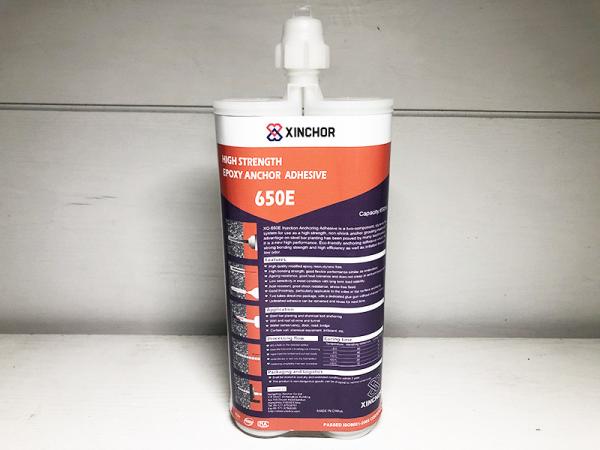

650ml Large Pack Epoxy Anchor Adhesive For Railway Anchoring
Chemical anchor adhesive, epoxy injection mortar, Chemical fixing
glue,
Chemical anchoring system used for anchoring and rebar connections
in concrete.
Strong, Versatile Epoxy Anchor Adhesives For Threaded Rod, Rebar
Item #: FixingChor165
Capacity: 650ml
Materials: Epoxy
Mixing Ratio: 1:1
650ml Large Pack Epoxy Anchor Adhesive For Railway Anchoring
Pure Epoxy 1:1 resin is a high strength performance, two components
pure epoxy resin system. Applied in one
single action this resin will produce a high performance, strong
fixing with exceptionally high chemical resistance.
Solvent-free, modified epoxy resin based, two part high performance
anchoring adhesive.
Advantages:
Styrene free
Can use in damped area
High load capacities
Non-sagging, even overhead handling,
Crack and non-cracked concrete
High stability
Low odour
Good Smelling
Non contraction after harden
No transportation restrictions
High bond strength,
Can be applied in severe environments
With molecular structural combining the Hydrophilic group and
hydrophobic group
Can operate and keep high performance in any environment of
moisture, hot and still
works even if the surface of hole is smooth.
Good elongation property
No breaking under high stressing.
repristinate after stressing.
APPLICATION
-Fixing handrails, steel constructions, machines, wood
constructions, reinforcement bars, especially suitable for big
diameter rebar and rods.
-Suitable to resist loads in cracked or uncracked concrete base
material for cases where anchor design theory and criteria applies.
-Bonding threaded rod and reinforcing bar into hardened concrete.
-Can be installed in a wide range of base material temperatures.
-Medium&Heavy duty load applications.
-Ideal for indoor usage.
-High durability.
2 Main Performance
| Testing project | Condition | Index |
| Gel Performance (According to China National Standard GB50728-2011) |
| Split Tensile Strength (MPa) | Under (23±2)℃, (50±5)%RH, tested by loading speed of 2mm/min | ≥8.5 |
| Flexural Strength (MPa) | ≥50 (no fragment damage) |
| Compressive Strength (MPa) | ≥60 |
| Bonding Capacity (According to China National Standard GB50728-2011) |
| Steel-Steel Tensile Shear Strength (MPa) | (23±2)℃ (50±5)%RH | ≥10 |
| Bond strength of Ribbed steel bar (or screw) with concrete under
constrain drawing condition | (23±2)℃ (50±5)%RH | C30,Ф25,L=150mm | ≥11 |
| C60,Ф25,L=150mm | ≥17 |
| Steel to Steel T-peeling strength (mm) | (23±2)℃,(50±5)%RH | ≤25 |
| Non-volatile contents | (105±2)℃,(180±5)min | ≥99% |
| Ageing resistance to heat and humidity 90d |
| Reduction rate of tensile strengths | Under normal room temperature | ≤12% |
| (According to China National Standard JGJ145-2013) |
| Tensile Strength (after high temperature welding) | Dia12 Grade II steel, C30 concrete Hole dia.16mm, Depth: 150mm | 55.1N, 57.0N, 54.8N |
3 Technical Data
Anchoring Adhesive used with thread rod
| Thread Rod Dia |
C30 Concrete | M10 | M12 | M16 | M20 | M24 |
| Drilling Dia.(mm) | | 12 | 14 | 18 | 24 | 28 |
| Depth (mm) | | 90 | 110 | 145 | 180 | 220 |
| Damage Pulling force KN | Grade 5.8 Steel | 29 | 42.2 | 78.5 | 122.5 | 254.5 |
| Grade 8.8 Steel / A4 SS | 36.8 | 52.9 | 94.1 | 147.0 | 211.7 |
| Damage Cutting force KN | Grade 5.8 Steel | 17.4 | 25.3 | 47.1 | 73.5 | 105.9 |
| Grade 8.8 Steel | `27.8 | 40.5 | 75.3 | 117.6 | 169.4 |
| Designed Pulling force KN | | 12.0 | 17.02 | 30.6 | 52.4 | 75.2 |
| Designed Cutting Force KN | Grade 5.8 Steel | 12.2 | 17.6 | 32.9 | 51.5 | 74.1 |
| Grade 8.8 Steel | 18.6 | 27.0 | 50.2 | 78.4 | 113.0 |
| Holes for each | | 54 | 25 | 8 | 5 | 3 |
ATTENTION
-Do not install anchors when substrate temperature is less than
0°C.
-Do not install anchors when the temperature is less than 10°C.
-If the cartridge is not finished, please clean the opening, then
put the plug back and cap tightly.
-It can be used again in the future by replacing the static mixer.
-Please ensure hole is properly cleaned. Hole may be damp but must
be free from water.
-Do not dilute mortar with any solvents and/or other chemicals.
-Please use Xinchor nozzles, other nozzles may cause ineffective
mixing
and reduce the properties of the mortar.
-At temperatures below 10°C should be warmed or stored in
temperatures
of 10-30°C for 24hours prior to use to improve product flow and
cure.
-If the gelling time expires, please use a new static mixer.
-Do not cut or shorten nozzles.
-Not suitable for use in diamond cored holes without roughening.
-Please ensure spiral mixer in nozzles.
-Do not install into uncured concrete.
Curing time:
| Operation and Curing time |
| Temperarure ℃ | -5 | 0 | 10 | 20 | ≥30 |
| Operation time (min) | 60 | 45 | 30 | 25 | 20 |
| Curing time (h) | 72 | 48 | 24 | 12 | 6 |
Consumption Chart (holes per cartridge)
| Anchor Rod dia. | M10 | M12 | M16 | M20 | M24 |
| Drilling Dia.(mm) | 12 | 14 | 18 | 24 | 28 |
| Depth (mm) | 90 | 110 | 145 | 180 | 220 |
| Each usage | 8ml | 13ml | 28ml | 62ml | 103ml |
| 360ml | 45 | 27 | | | |
| 390ml | 48 | 30 | 14 | 6 | 3 |
| 585ml | 73 | 45 | 20 | 9 | 5 |
| 650ml | 81 | 50 | 23 | 10 | 6 |
