Thread Rods Chemical Adhesive Anchors High Grip Force Styrene Free
Reliable
Approved for anchorings in
Concrete, cracked and non-cracked Applications
Rebar planting in concrete structures.
Railway or express way modification works
Structure reinforcement
Curtain wall installing
Bridge modification works
Keel fixing in out wall
ATTENTION
- Do not install anchors when the temperature is less than 10°C.
- If the cartridge is not finished, please clean the opening, then
put the plug back and cap tightly.
- At temperatures below 10°C should be warmed or stored in
temperatures
of 10-30°C for 24hours prior to use to improve product flow and
cure.
- If the gelling time expires, please use a new static mixer.
- Do not cut or shorten nozzles.
- It can be used again in the future by replacing the static mixer.
- Please ensure hole is properly cleaned. Hole may be damp but must
be free from water.
- Do not install anchors when substrate temperature is less than
0°C.

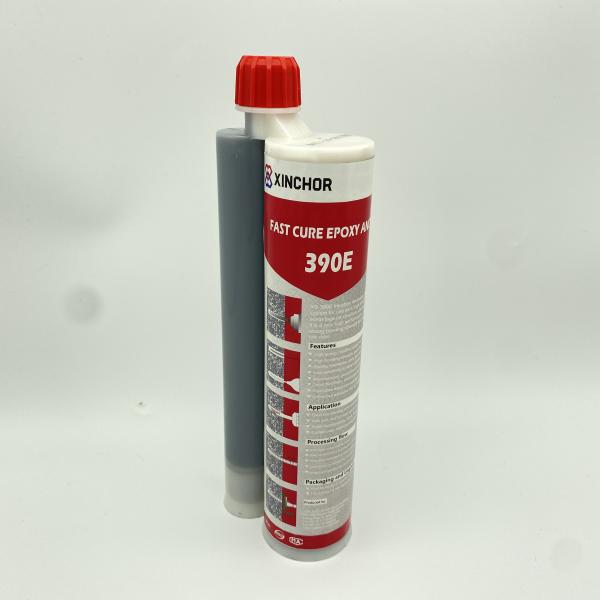

420ml 2:1 Two Component Chemcial Anchor Adhesive For Thread Rods
Chemical anchor adhesive, epoxy injection mortar, Chemical fixing
glue,
Chemical anchoring system used for anchoring and rebar connections
in concrete.
Item #: FixingChor142
Capacity: 420ml
Materials: Epoxy
Mixing Ratio: 2:1
Characteristics
Suitable for medium loads and non-critical applications.
Fast working times for early loading in time sensitive
applications.
Use in extremely cold environments and fixings holes.
Good durability formulation, resistance to chemicals.
Used for studs and relatively small diameter rebar. ⋅
Fixings in concrete, wood, or other high strength materials.
Testing project | Condition | Index |
Gel Performance (According to China National Standard GB50728-2011) |
Splitting Tensile Strength (MPa) | Under (23±2)℃,(50±5)%RH, tested by loading speed of 2mm/min | ≥8.5 |
Flexural Strength (MPa) | ≥50 (no fragment damage) |
Compressive Strength (MPa) | ≥60 |
Bonding Capacity (According to China National Standard GB50728-2011) |
Steel-Steel Tensile Shear Strength (MPa) | (23±2)℃,(50±5)%RH | ≥10 |
Bonding strength of Ribbed steel bar (or screw) with concrete under
constrain drawing condition | (23±2)℃ (50±5)%RH | C30,Ф25,L=150mm | ≥11 |
C60,Ф25,L=150mm | ≥17 |
Steel-Steel T-peeling strength (mm) | (23±2)℃,(50±5)%RH | ≤25 |
Non-volatile content | (105±2)℃,(180±5)min | ≥99% |
Ageing resistance to heat and humidity 90d |
Reduction rate of tensile strength | Under normal room temperature | ≤12% |
(According to China National Standard JGJ145-2013) |
Tensile Strength (after high temperature welding) | Dia12 Grade II steel, C30 concrete Hole dia.16mm, Depth: 150mm | 55.1N, 57.0N, 54.8N |
.
