390ml 3:1 Styrene Free Epoxy Chemcial Anchor Adhesive For Rebar
Planting
Chemical anchor adhesive, epoxy injection mortar, Chemical fixing
glue,
Chemical anchoring system used for anchoring and rebar connections
in concrete.
Item #: FixingChor139
Capacity: 390ml
Materials: Epoxy
Mixing Ratio: 3:1
Product Description:
390ml 3:1 Styrene Free Epoxy Chemcial Anchor Adhesive For Rebar
Planting is
a high performance, two components pure epoxy resin system. Applied
in one
single action this resin will produce a high performance, strong
fixing with exceptionally
high chemcial resistance.
Product Features
-High grip force, high adhesive force.
-Longer working time.
-Designed for use with threaded rod and reinforcing bar hardware
elements.
-Special application to diamond drilled holes and large bore
diameter.
-The product ingredient is odorless and non-toxic.
-Orange color can be easily detected or monitored.
-Wide temperature range(5°C~+40°c)
-Styrene free.
Application Range
Fixing of the following substrates:
Concrete
Hard natural and reconstituted stone
Solid rock and masonry
Steel
Wood
Mechanical and electrical services installation
Anchoring of supports for ducting and equipment.
Metal Work, carpentry
Fixing of handrails, balustrades and supports
Fixing of railings
Fixing of window and door frames
For structural work:

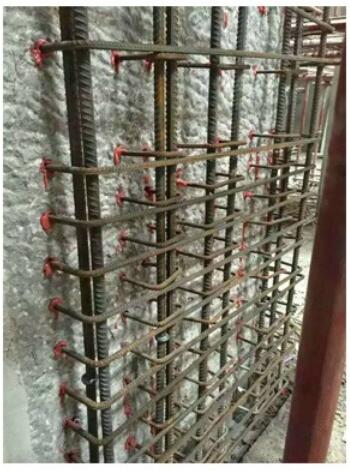

Rebar / steel reinforcement anchoring in new and refurbishment
works.
Threaded rods
Bolts and special fastening systems
Testing project | Condition | Index |
Gel Performance (According to China National Standard GB50728-2011) |
Splitting Tensile Strength (MPa) | Under (23±2)℃,(50±5)%RH, tested by loading speed of 2mm/min | ≥8.5 |
Flexural Strength (MPa) | ≥50 (no fragment damage) |
Compressive Strength (MPa) | ≥60 |
Bonding Capacity (According to China National Standard GB50728-2011) |
Steel-Steel Tensile Shear Strength (MPa) | (23±2)℃,(50±5)%RH | ≥10 |
Bonding strength of Ribbed steel bar (or screw) with concrete under
constrain drawing condition | (23±2)℃ (50±5)%RH | C30,Ф25,L=150mm | ≥11 |
C60,Ф25,L=150mm | ≥17 |
Steel-Steel T-peeling strength (mm) | (23±2)℃,(50±5)%RH | ≤25 |
Non-volatile content | (105±2)℃,(180±5)min | ≥99% |
Ageing resistance to heat and humidity 90d |
Reduction rate of tensile strength | Under normal room temperature | ≤12% |
(According to China National Standard JGJ145-2013) |
Tensile Strength (after high temperature welding) | Dia12 Grade II steel, C30 concrete Hole dia.16mm, Depth: 150mm | 55.1N, 57.0N, 54.8N |
Best performance mortar in the shuttle cartridge based on
epoxy resin.
▪ Optimum solution for concrete (anchor rods and reinforcement
bars).
▪ Resin and hardener are stored in two separate chambers
and are not mixed and activated until pushed through the static
mixer.
▪ Partially used cartridges can easily be reused by changing the
static mixer.
Our main product series:
-- Steel bonding reinforcement system
XQ-JGN structural epoxy adhesive
XQ-GZ Grouting epoxy adhesive
XQ-FB edge sealing adhesive
-- Concrete repair system
XQ-GF crack grouting adhesive
XQ-FF crack sealing adhesive
-- Chemical Anchor series
Pure Epoxy Adhesive 360ml (5:1) 390ml(3:1) 585ml (3:1)
-- Carbon fiber reinforcement system,
XQ-XW carbon fiber epoxy adhesive
XQ-XB concrete surface leveling epoxy adhesive
XQ-CFC carbon fiber fabric 12K unidirectional 200gsm-600gsm
