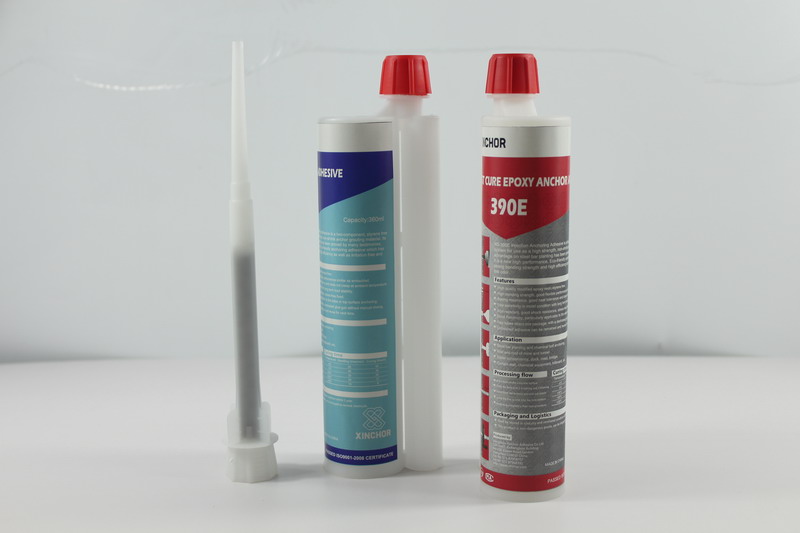

    Cartrige Epoxy Chemical Anchor , Adhesive Wall Anchors Two Component Design

    Ask Lasest Price
    Brand Name : XINCHOR
    Model Number : FixingChor 110
    Payment Terms : L/C, T/T
    Supply Ability : 100,000pcs per month
    Delivery Time : 30 days
    Price : Negotiable
    • Product Details
    • Company Profile

    Cartrige Epoxy Chemical Anchor , Adhesive Wall Anchors Two Component Design

    1000ml 1:1 Cartrige Epoxy Chemcial Anchor Adhesive For Structural Strengthening
    Chemical anchor adhesive, epoxy injection mortar, Chemical fixing glue,
    Chemical anchoring system used for anchoring and rebar connections in concrete.

    Item #: FixingChor110
    Capacity: 1000ml
    Materials: Epoxy
    Mixing Ratio: 3:1


    Product Description:

    1000ml 1:1 Cartrige Epoxy Chemcial Anchor Adhesive For Structural Strengthening is

    a two component, high tensile strength, modified pure epoxy chemcial anchor adhesive.chemical fixing system

    strong fixing with exceptionally high chemcial resistance.Applied in one single action this resin will produce a high performance,


    Suitable for

    Non-cracked concrete

    Reinforcement bars

    For fixing of:

    Steel constructions

    Consoles

    High-racks

    Machines

    Staircases

    Wooden constructions

    Reinforcement bars


    Pass GB50728-2011

    Humidity resistance testing

    Freeze-thaw resistance Testing

    Resistance to fatigue stress Testing

    Resistance of long term stress testing etc .

    Can be used in projects with Design Period of 50 years.


    Testing Items

    Condition

    Index

    Adhesive Performance (According to China National Standard GB50728-2011)

    Splitting Tensile Strength (MPa)

    Under (23±2)℃,(50±5)%RH, tested by loading speed of 2mm/min

    ≥8.5

    Flexural Strength (MPa)

    ≥50

    (no fragment damage)

    Compressive Strength (MPa)

    ≥60

    Bonding Capacity (According to China National Standard GB50728-2011)

    Steel-Steel Tensile Shear Strength (MPa)

    (23±2),(50±5)%RH

    ≥10

    Bonding strength of Ribbed steel bar (or screw) with concrete under constrain drawing condition

    (23±2) (50±5)%RH

    C30,Ф25,L=150mm

    ≥11

    C60,Ф25,L=150mm

    ≥17

    Steel-Steel T-peeling strength (mm)

    (23±2)℃,(50±5)%RH

    ≤25

    Non-volatile content

    (105±2)℃,(180±5)min

    ≥99%

    Ageing resistance to heat and humidity 90d

    Reduction rate of tensile strength

    Under normal room temperature

    ≤12%

    (According to China National Standard JGJ145-2013)

    Tensile Strength (after high temperature welding)

    Dia12 Grade II steel, C30 concrete

    Hole dia.16mm, Depth: 150mm

    55.1N, 57.0N, 54.8N


    Approved for anchorings in


    Railway or express way modification works

    Structure reinforcement

    Curtain wall installing

    Concrete, cracked and non-cracked Applications

    Rebar planting in concrete structures.

    Bridge modification works

    Keel fixing in out wall


    ATTENTION

    - Do not install anchors when the temperature is less than 10°C.

    - If the cartridge is not finished, please clean the opening, then put the plug back and cap tightly.

    - At temperatures below 10°C should be warmed or stored in temperatures

    of 10-30°C for 24hours prior to use to improve product flow and cure.

    - If the gelling time expires, please use a new static mixer.

    - Do not cut or shorten nozzles.

    - It can be used again in the future by replacing the static mixer.

    - Please ensure hole is properly cleaned. Hole may be damp but must be free from water.

    - Do not install anchors when substrate temperature is less than 0°C.
