    Cost Effective Carbon Fiber Weave Roll Weather Proof High Strength Weight Ratio

    Ask Lasest Price
    Brand Name : XINCHOR
    Model Number : XQ-C312
    Certification : CE
    Price : Negotiable
    Supply Ability : 500000m2
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Cost Effective Carbon Fiber Weave Roll Weather Proof High Strength Weight Ratio

    Vietnam Standard Carbon fiber CFRP fabric for structural strengthening

    Weight: 30gsm

    Density: 1.8g/cm³

    Packing: 100 meters/roll

    Width: 100mm, 200mm, 300mm, 500mm or to be customized.

    Storage Condition:Store dry at 40°-95° F(4° -35°)

    Shelf Life: 50 years

    Color:Black

    Carbon Fiber Type: 0° (unidirectional)


    Vietnam Standard Carbon fiber CFRP fabric for structural strengthening


    XQ-C300 is a high strength, unidirectional carbon fiber cfrp fabric. Material is field laminated using epoxy to form a carbon fiber reinforced polymer (CFRP fabric ) used to strengthen structural concrete elements.


    A mix of usually carbon fibre cfrp fabrics, and an epoxy resin, wrapping systems are custom designed for each project and application. Where there is an element of corrosion in the structure, carbon fibre wrapping can be used to both weather-proof corrosion and structurally re-enforce the structure. The impervious material will protect a structure from moisture intrusion and further corrosion, reducing the need for ongoing maintenance work.


    Carbon fibre strengthening can be a cost effective, clean and un-intrusive solution to a common structural problem. It isn’t suitable for every strengthening project and you should always get advice from a specialist contractor about the best method to use.


    Carbon fiber cfrp fabric used for shear strengthening, confinement strengthening, flexural strengthening

    • High strength to weight ratio
    • Excellent resistance to creep and fatigue
    • Extremely durable
    • Low aesthetic impact

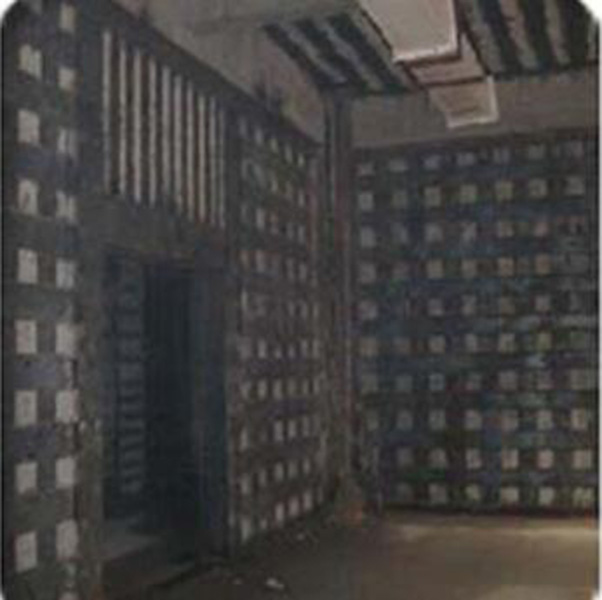

    Structural Elements

    • Columns strengthening

    • Beams strengthening

    • Slabs strengthening

    • Walls strengthening

    • Pipes strengthening

    • Pier caps strengthening


    Application Range

    Load increases

    Seismic reinforcement

    Improve structural state

    Damage of structural parts

    Change the structural function

    Remit mistakes in design and construction


    Flexural strengthening,

    Shear strengthening,

    Column confinement and ductility improvement.


    Item No.XQ-C300
    DescriptionStructural Strengthening Carbon fiber CFRP fabric For Seismic Resistant
    Material12K Unidirectional Carbon fiber CFRP fabric
    Weight300gsm
    OEM/ODMYes
    PackingCarton
    useageStructural Strengthening
    ColorBlack
    Minimum Order100 meters
    Delivery Time30 days after all design confirmed
    Country of OriginCHINA
    CertificationCE
    Payment termT/T ,L/C
    ShippingBy sea from Shanghai or Ningbo port

    Our main product series:


    -- Carbon fiber reinforcement system,

    XQ-XW carbon fiber epoxy adhesive

    XQ-XB concrete surface leveling epoxy adhesive

    XQ-CFC carbon fiber fabric 12K unidirectional 200gsm-600gsm

    Carbon fiber CFRP fabric


    -- Chemical Anchor series

    Pure Epoxy Adhesive 360ml (5:1) 390ml(3:1) 585ml (3:1)


    -- Steel bonding reinforcement system

    XQ-JGN structural epoxy adhesive

    XQ-GZ Grouting epoxy adhesive

    XQ-FB edge sealing adhesive


    -- Concrete repair system

    XQ-GF crack grouting adhesive

    XQ-FF crack sealing adhesive
