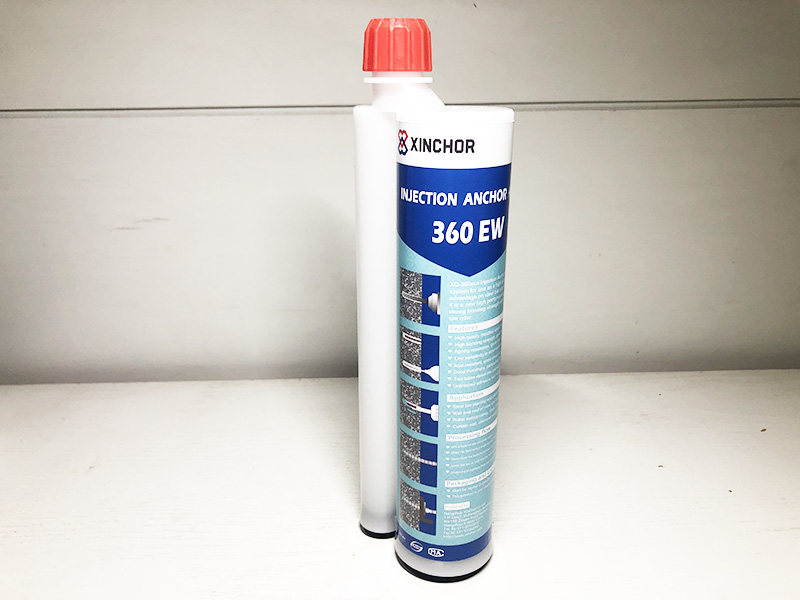

360 5:1 Dual Cartridge Concrete Anchor Adhesive For Anchor Bolts
And Thread Rods
Chemical anchor adhesive, epoxy injection mortar, Chemical fixing
glue,
Chemical anchoring system used for anchoring and rebar connections
in concrete.
Strong, Versatile Epoxy Anchor Adhesives For Threaded Rod, Rebar
Item #: FixingChor136
Capacity: 360ml
Materials: Pure Epoxy
Mixing Ratio: 5:1
360 5:1 Dual Cartridge Concrete Anchor Adhesive For Anchor Bolts
And Thread Rods
Concrete Anchor Adhesive with approvals for rebar connections and
heavy-duty anchoring
Base materials: Concrete (cracked), Concrete (uncracked), Masonry
(grout-filled CMU)
Base material condition: Underwater, Wet, Dry,
Advantages:
Styrene-free
Non-sag, even overhead
Non-cracked concrete
High load capacities
Can use in damp area
High stability
Low odour
Non contraction after harden
No transportation restrictions
High bonding strength,
Can be applied in severe environment
With molecular structure combining the Hydrophilic group and
hydrophobic group
Can operate and keep high performance in environment of moisture,
hot and still works even if the surface of hole is smooth.
Good elongation property
No breaking under high stressing.
repristinate after stressing.
APPLICATION
-Fixing machines, handrails, steel constructions, wooden
constructions, reinforcement bars, especially suitable for big
diameter rebar and rods.
-Suitable to resist loads in cracked or uncracked concrete base
material for cases where anchor design theory and criteria applies.
-Bonding threaded rod and reinforcing bar into hardened concrete.
-Can be installed in a wide range of base material temperatures.
-Medium&Heavy duty load applications.
-Ideal for indoor usage.
-High durability.
2 Main Performance
| Testing project | Condition | Index |
| Gel Performance (According to China National Standard GB50728-2011) |
| Split Tensile Strength (MPa) | Under (23±2)℃, (50±5)%RH, tested by loading speed of 2mm/min | ≥8.5 |
| Flexural Strength (MPa) | ≥50 (no fragment damage) |
| Compressive Strength (MPa) | ≥60 |
| Bonding Capacity (According to China National Standard GB50728-2011) |
| Steel-Steel Tensile Shear Strength (MPa) | (23±2)℃ (50±5)%RH | ≥10 |
| Bonding strength of Ribbed steel bar (or screw) with concrete under
constrain drawing condition | (23±2)℃ (50±5)%RH | C30,Ф25,L=150mm | ≥11 |
| C60,Ф25,L=150mm | ≥17 |
| Steel-Steel T-peeling strength (mm) | (23±2)℃,(50±5)%RH | ≤25 |
| Non-volatile content | (105±2)℃,(180±5) min | ≥99% |
| Ageing resistance to heat and humidity 90d |
| Reduction rate of tensile strength | Under normal room temperature | ≤12% |
| (According to China National Standard JGJ145-2013) |
| Tensile Strength (after high temperature welding) | Dia12 Grade II steel, C30 concrete Hole dia.16mm, Depth: 150mm | 55.1N, 57.0N, 54.8N |
3 Technical Data
Anchoring Adhesive used with thread rod
| Thread Rod Dia |
C30 Concrete | M10 | M12 | M16 | M20 | M24 |
| Drilling Dia. (mm) | | 12 | 14 | 18 | 24 | 28 |
| Depth (mm) | | 90 | 110 | 145 | 180 | 220 |
| Damage Pulling force KN | Grade 5.8 Steel | 29 | 42.2 | 78.5 | 122.5 | 254.5 |
| Grade 8.8 Steel / A4 SS | 36.8 | 52.9 | 94.1 | 147.0 | 211.7 |
| Damage Cutting force KN | Grade 5.8 Steel | 17.4 | 25.3 | 47.1 | 73.5 | 105.9 |
| Grade 8.8 Steel | `27.8 | 40.5 | 75.3 | 117.6 | 169.4 |
| Designed Pulling force KN | | 12.0 | 17.02 | 30.6 | 52.4 | 75.2 |
| Designed Cutting Force KN | Grade 5.8 Steel | 12.2 | 17.6 | 32.9 | 51.5 | 74.1 |
| Grade 8.8 Steel | 18.6 | 27.0 | 50.2 | 78.4 | 113.0 |
| Holes for each | | 54 | 25 | 8 | 5 | 3 |
Best performance mortar in the shuttle cartridge based on
epoxy resin.
▪ Optimum solution for concrete (anchor rods and reinforcement
bars).
▪ Resin and hardener are stored in two separate chambers
and are not mixed and activated until pushed through the static
mixer.
▪ Partially used cartridges can easily be reused by changing the
static mixer.
Characteristics
Use in extremely cold environments and fixings holes.
Fast working times for early loading in time sensitive
applications.
Good durability formulation, resistance to chemicals.
Used for studs and relatively small diameter rebar. ⋅
Fixings in concrete, wood, or other high strength materials.
Suitable for medium loads and non-critical applications.
Curing time:
| Operation and Curing time |
| Temperarure ℃ | -5 | 0 | 10 | 20 | ≥30 |
| Operation time (min) | 60 | 45 | 30 | 25 | 20 |
| Curing time (h) | 72 | 48 | 24 | 12 | 6 |
Consumption Chart (holes per cartridge)
| Anchor Rod dia. | M10 | M12 | M16 | M20 | M24 |
| Drilling Dia.(mm) | 12 | 14 | 18 | 24 | 28 |
| Depth (mm) | 90 | 110 | 145 | 180 | 220 |
| Each usage | 8ml | 13ml | 28ml | 62ml | 103ml |
| 360ml | 45 | 27 | | | |
| 390ml | 48 | 30 | 14 | 6 | 3 |
| 585ml | 73 | 45 | 20 | 9 | 5 |
| 650ml | 81 | 50 | 23 | 10 | 6 |
