High Modulus 300gsm CFRP Carbon Fiber Fabric For Oil Pipe Strengthening
CFRP carbon fiber wrap for bridge, beam, columns


High Modulus 300gsm CFRP Carbon Fiber Fabric For Oil Pipe Strengthening

Carbon Fiber Reinforced Polymers for Structural Strengthening. These fabrics are applied onto the surface of existing structural members in buildings, bridges and other structures. The result is an externally bonded CFRP (carbon fiber reinforced polymer) reinforcement system engineered to increase the structural performance.

XQ-C300 is a high strength, unidirectional carbon fiber fabric. Material is field laminated using epoxy to form a carbon fiber reinforced polymer (CFRP) used to strengthen structural concrete elements.

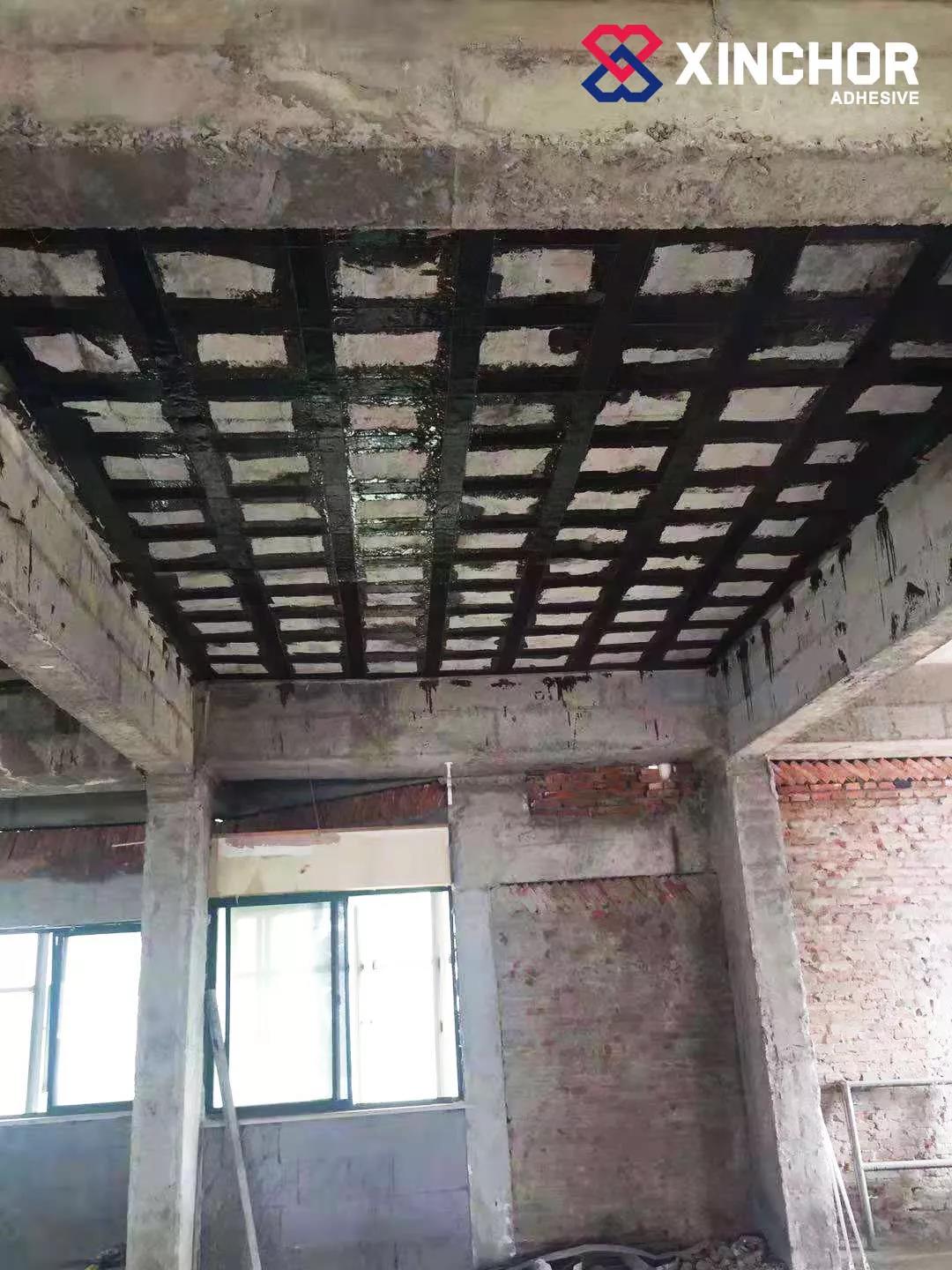

To complete the reinforcing system, carbon fibre wrapping of the structural beam will be undertaken. Woven unidirectional carbon fibre fabric will be wrapped around the beam in a series of over-lapping layers to further strengthen the reinforced concrete.

Structural Elements

• Columns strengthening

• Beams strengthening

• Slabs strengthening

• Walls strengthening

• Pipes strengthening

• Pier caps strengthening

Key Featuers:

• Flexible
• High strength
• High modulus
• Easy to install
• Long shelf life
• Light self weight
• High toughness
• Anti high temperature
• Environmental-friendly
• Carbon fiber fabric used for shear strengthening, confinement strengthening, flexural strengthening

Storage Condition:Store dry at 40°-95° F(4° -35°)
Shelf Life: 50 years
Color:Black
Carbon Fiber Type: 0° (unidirectional)

Attention

1, carbon fabric cloth is conductive, please leave far away from electrical equipment and power supply, or take reliable protection
2, carbon cloth bent should be avoided in the process
3, the surface should be clean and dry;
4, temperature theoretically should be 5-40 ℃
5, Processing in rain and outdoor is prohibited
6, If relative humidity is greater than 85% or condensation on the concrete surface, Processing is not allowed;
7, Matched resin shall be stored sealed and away from fire and direct sunlight.
8, The place of the formulation and use of resins should maintain good ventilation;
9, on-site workers should take appropriate protection measures.

Company Profile

Xinchor Technology establised since 2005, professional manufacturer of structural strengthening products.

Our Product Lines:

- Carbon Fiber Reinforcement System: XQ-CFC 300gsm, 200gsm fabric and adhesives XQ-XW

- Steel Bonding System: XQ-GZ Epoxy grouting adhesives, XQ-JGN Plate bonding Adhesives

- Crack Repairing System: XQ-GF Crack grouting adhesives, XQ-FF crack seal adhesives

- Chemical Anchoring 390ml(3:1), 585ml(3:1), 650ml(1:1),

Established in 2005, Zhejiang Xinchor Technology Co., Ltd. Focuses on research, development, production and marketing for building reinforcement materials and chemical anchoring adhesive.

Our Headquarter and marketing center located in West Lake Technological Park in Hangzhou, only 2 hours driving from Shanghai Pudong Airport, as well as we have sales branches throughout China, we passed ISO9001-2008 certificate in 2010.

As the earliest reinforcement material providers, we have our products wide range applied to high-speed railway, nuclear power station, bridge, tunnel, subway, municipal and civil buildings, and maintain a long-term cooperative relationship with a number of well-known construction companies. As a professional manufacturer of reinforcement materials, with company spirit of "quality first, integrity management" purposes, we can provide good quality products for building and industry at home and abroad.

You are welcome to contact us, we would be delighted to be of service, providing advice and professional building reinforcement solutions.
