Plate Sealing Steel Epoxy Adhesive For Structural Strengthening

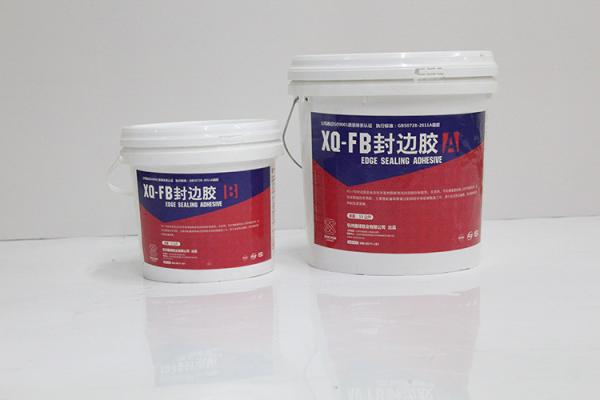

XQ-FB Edge Sealing Adhesive
Modified epoxy resin adhesive, two components, solvent free, can be
used on moisture surface, especially for crack sealing.
Range of Application
Sealing the crack surface and grouting opening
Sealing the edges during bonding steel plate.
Filling and sealing the crack
Repairing and leveling the crack defects in concrete
Crack repairing for beams, poles and floors of new and old
buildings. Assorted with XQ-GF grouting adhesive
Stone dry hanging construction
Features
Close to the concrete color
High self strength and bonding strength with concrete, good
resistance to ageing and media
Solvent free, no shrink during hardening
Good thixotropic performace, no flowing for standing wall and roof
Can be used for both dry and moisture surface.
Product Performance
1 Main Performance
| Testing project | Condition | Index |
| Gel Performance |
| Tensile Strength | Under (23±2)℃,(50±5)%RH, tested by loading speed of 2mm/min | ≥30MPa |
| Tensile modulus of elasticity | ≥1.5×103MPa |
| Elongation | ≥1.5% |
| Bending Strength | ≥40MPa
|
| Compressive Strength | ≥70MPa |
| Bonding Capacity |
| Steel-Steel Tensile Shear Strength | (23±2)℃,(50±5)%RH | ≥10MPa |
| Steel-Steel bonding tensile strength | (23±2)℃ (50±5)%RH | C30,Ф25,L=150mm | ≥32MPa |
| C60,Ф25,L=150mm | ≤35MPa |
| Steel-Steel T-peeling strength | (23±2)℃,(50±5)%RH | ≥2.5mm (Concrete cohesion damage) |
| Steel to C45 Concrete cohesive pulling strength | | ≥14MPa |
Processing Flow:
Crack surface treatment
Mixing the adhesive
Sealing the cracks
Leveling
Packaging and Logistics
Two components in separate package, Mix ratio (weight) A:B=3:1
Shall be stored in cool (under 25℃), dry and ventilated place, not
exceed 1 year.
Toxic free, non dangerous, can be shipped as normal chemical
materials.
Attention:
1. Shall be stored in a dry, ventilated place and away from fire,
Avoid upside down, sun exposure, rain and collide with sharp
things.
2. Must wear protective gloves and masks, if accidentally touched
by skin, please clean with acetone or alcohol, and washed by water,
if accidentally splashed into the eyes rinse with plenty of water
and seek immediate medical attention.
3. Do not mix the adhesive too much at each time.
