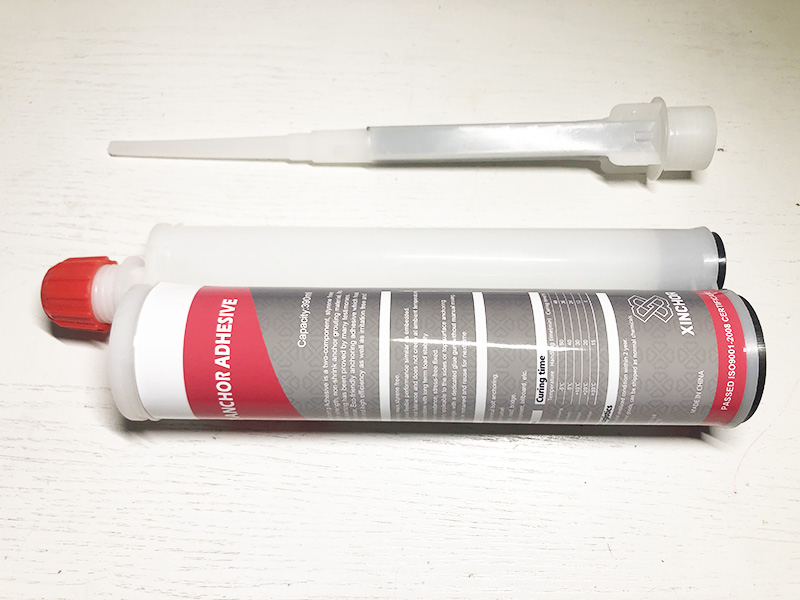

    Structural Strengthening Injectable Adhesive , Concrete Anchor Adhesive XQ-390E

    Ask Lasest Price
    Brand Name : XINCHOR
    Model Number : FixingChor 158
    Payment Terms : L/C, T/T
    Supply Ability : 100,000pcs per month
    Delivery Time : 30 days
    Price : Negotiable
    • Product Details
    • Company Profile

    Structural Strengthening Injectable Adhesive , Concrete Anchor Adhesive XQ-390E

    XQ-390E High Strength Hybrid Injectable Adhesive For Structural Strengthening

    Chemical anchor adhesive, epoxy injection mortar, Chemical fixing glue,

    Chemical anchoring system used for anchoring and rebar connections in concrete.


    Item #: FixingChor158

    Capacity: 580ml

    Materials: Epoxy

    Mixing Ratio: 3:1


    Product Description:

    XQ-390E High Strength Hybrid Injectable Adhesive For Structural Strengthening

    Adopted with modified epoxy resin and composite materials, XQ-IME Injection Anchoring Adhesive is a two-component, Styrene Free system for use as a high strength, non-shrink anchor grouting material. Its advantage on steel bar planting has been proved by many testimonies. Compares with other adhesive, it is a new high performance, Eco-friendly anchoring adhesive which has strong bonding strength and high efficiency as well as irritation free and low odor.


    Characteristics

    Suitable for medium loads and non-critical applications.

    Fast working times for early loading in time sensitive applications.

    Use in extremely cold environments and fixings holes.

    Good durability formulation, resistance to chemicals.

    Used for studs and relatively small diameter rebar. ⋅

    Fixings in concrete, wood, or other high strength materials.


    Advantages

    ▪ Excellent mortar bonding ensures highest loads in concrete.

    ▪ Suitable for underwater installations.

    ▪ Suitable for diamond drilled holes.

    ▪ Expansion-free anchoring allows low axial spacings and edge distances.

    ▪ Ergonomic injection guns for quick and easy installation


    Technical Parameter:


    1. Basic parameters

    1) Appearence

    Part A (main): white cream

    Part B (hardener): red cream / grey cream

    2) Mixed Viscosity: 18-22Pa.s

    3) Hardened density: 1.50±0.10g/cm3

    4) Mixing ratio (Volume ratio): 390ml(3:1)

    5) Shelf time: 24 months


    2 Main Performance

    Testing projectConditionIndex
    Gel Performance (According to China National Standard GB50728-2011)
    Splitting Tensile Strength (MPa)Under (23±2)℃, (50±5)%RH, tested by loading speed of 2mm/min≥8.5
    Flexural Strength (MPa)

    ≥50

    (no fragment damage)

    Compressive Strength (MPa)≥60
    Bonding Capacity (According to China National Standard GB50728-2011)
    Steel-Steel Tensile Shear Strength (MPa)(23±2)℃ (50±5)%RH≥10
    Bonding strength of Ribbed steel bar (or screw) with concrete under constrain drawing condition(23±2)℃ (50±5)%RHC30,Ф25,L=150mm≥11
    C60,Ф25,L=150mm≥17
    Steel-Steel T-peeling strength (mm)(23±2)℃,(50±5)%RH≤25
    Non-volatile content(105±2)℃,(180±5)min≥99%
    Ageing resistance to heat and humidity 90d
    Reduction rate of tensile strengthUnder normal room temperature≤12%
    (According to China National Standard JGJ145-2013)
    Tensile Strength (after high temperature welding)

    Dia12 Grade II steel, C30 concrete

    Hole dia.16mm, Depth: 150mm

    55.1N, 57.0N, 54.8N

    3 Technical Data

    Anchoring Adhesive used with thread rod

    Thread Rod Dia

    C30 Concrete

    M10M12M16M20M24
    Drilling Dia.(mm)1214182428
    Depth (mm)90110145180220
    Damage Pulling force KNGrade 5.8 Steel2942.278.5122.5254.5
    Grade 8.8 Steel / A4 SS36.852.994.1147.0211.7
    Damage Cutting force KNGrade 5.8 Steel17.425.347.173.5105.9
    Grade 8.8 Steel`27.840.575.3117.6169.4
    A4 SS24.435.465.9102.9105.9
    Designed Pulling force KN12.017.0230.652.475.2
    Designed Cutting Force KNGrade 5.8 Steel12.217.632.951.574.1
    Grade 8.8 Steel18.627.050.278.4113.0
    A4 SS13.019.035.355.256.9

    Anchoring Loading Capacity of rebar to C30 concrete (designed value KN)


    Rebar d(mm)1012141618202225283032
    Hole D(mm)1416182225283032363840
    Bar planting depth (mm)10019.8
    12023.827.6
    14027.732.236.3
    16031.736.841.545.8
    18041.446.651.655
    20046.051.857.361.162.8
    22057.063.167.269.171.5
    24062.268.973.375.47879.2
    26074.679.381.784.585.896.1
    28080.485.488.091.092.4102.9107.4
    30091.594.297.599109.8114.6115.8
    32097.6100.5103.9105.6116.6121.8123
    340103.7106.8110.4112.2123.5128.9130
    360113.0117.0118.8130.4136.1137.5
    380119.3123.5125.3137.2143.3144.8
    400125.6130131.9144.1150.4152
    420136.5138.5150.9157.6159.2
    440143145.1157.8164.7166.5
    480149.5151.7164.7171.9173.7
    5001561583171.5179.1181
    550164.9188.7197199.1
    600181.4205.8214.8217.1
    650197.9223232.7235.2
    700240.1250.6253.2
    750257.3268.5271.5
    800286.4289.6
    850307.7
    anchoring length (mm)147149178210250300351446538592666
    steel yield (mm)23.633.946.260.376.394.2114147.2184.6212.1241.2

    Actual Tensile Strength (KN)

    Grade II rebar fy=310 N/mm (designed), fy=310 N/mm (standard)

    Concrete: C30


    Rebar d(mm)10121416182022252832
    Hole D(mm)14161822252830323640
    Bar planting depth (mm)10030.3
    12036.738.5
    14042.247.553.1
    16058.862.768.9
    18063.573.380.590.1
    20068.580.795.2106.7120.7
    24089.5102.4122.6137.6140.7
    260118.7137.6152.4166.8168.5
    280149.7168.7180.2192.7200.2
    300183.5200.7218.5231.7
    280210.6241.7260.5250.5
    300220.9265.5298.8280.7
    340277.7327.7330.2
    380285.6356.7370.7
    420342.2
    460400.1
    500427.7
    540447.2
    580466.5
    steel yield depth (mm)90121142185211250280357405501

    Curing time:


    Operation and Harden time
    Temperarure -501020≥30
    Operation time (min)6045302520
    Harden time (h)724824126

    Consumption Chart (holes per cartridge)


    Anchor Rod dia.M10M12M16M20M24
    Drilling Dia.(mm)1214182428
    Depth (mm)90110145180220
    Each usage8ml13ml28ml62ml103ml
    390ml48301463

    Packaging:

    • One cartridge with one mixer in carton
    • 12pcs/20pcs/30pcs per carton.
    • Xinchor label or your own label.
    • EXP Date on the top of cartridge.
    • Customized Packing.
    Item No.MixingStandard Pack/SetPcs/CtnCtn Size (cm)Ctn/PalletPallets/ 20'FCLPallets/ 40'FCL
    FixingChor 1365:1360ml+ 1mixer2027x27x27601020
    FixingChor 1393:1390ml+ 1mixer2040x26x27501020
    FixingChor 1583:1585ml + 1mixer1229x21.5x30641020
    FixingChor 1401:1400ml+ 1mixer3049×30×26401020
    FixingChor 1651:1650ml+ 1mixer1031.5×21×26701020
    FixingChor 1422:1420ml + 1mixer2046x22x23401020

    Shipping:

    • Shipments can be arranged by sea, air, courier express.
    • Courier express includes DHL, FedEx, TNT, UPS, EMS, SF, etc.

    FAQ:


    1. Can you do OEM service?
    Yes,we can provide full solution for your OEM requirements..

    2. Can I take a sample for quality check?
    Yes,free sample can be taken for a test.

    3. What’s your delivery time?
    10 days for OEM service base on MOQ

    4. Where have your products been sold to?
    Our products have been exported all over the world.

    5. Are you a manufacturer?
    Yes ,we are a professional manufacturer since 2005.
