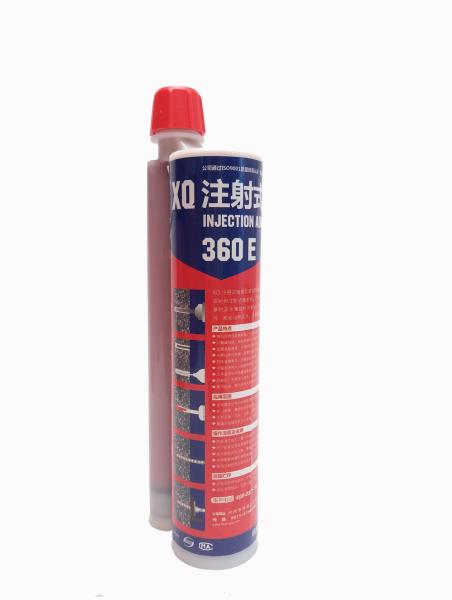

360ml 5:1 High Bonding Strength Adhesive Anchoring System For Structural Strengthening
Chemical anchor adhesive, epoxy injection mortar, Chemical fixing glue,
Chemical anchoring system used for anchoring and rebar connections in concrete.

Item #: FixingChor136
Capacity: 360ml
Materials: Epoxy
Mixing Ratio: 5:1


Product Description:

360ml 5:1 High Bonding Strength Adhesive Anchoring System For Structural Strengthening is a Styrene Free, two-component system for use as a non-shrink, high strength, anchor grouting material. adopted with modified epoxy resin and composite materials, Its advantage on steel bar planting has been proved by many testimonies. it is a new high performance, Eco-friendly anchoring adhesive which has strong bonding strength and high efficiency as well as irritation free and low odor.

Advantages

• good thixotropy, particularly applicable to the sides or top surface anchoring;
• two-cylinder direct-mix package, with a dedicated glue gun without manual mixing

• Low sensitivity in moist condition with long term load stability;

• High bonding strength, good flexible performance similar as embedded.
• acid-resistant, good shock resistance, stress-free fixed;
• Ageing resistance, good heat tolerance and does not creep at ambient temperature;

Application:

• Reinforcement for equipment, pipeline installation, supports of curtain wall.
• All concrete building without embedded steel bar
• Reinforcement and reconstruction of buildings with concrete
• Reinforcement and reconstruction of Railway, Road, Bridge, Water resources, Tunnel, etc.

Technical Parameter:

1) Appearence

Part A (main): beige cream

Part B (hardener): grey cream

2) Mixed Viscosity: 18-22Pa.s

3) Hardened density: 1.50±0.10g/cm³

4) Mixing ratio (Volume ratio): 360ml (5:1)

5) Shelf time: 24 months

Technical Data

Anchoring Adhesive used with thread rod

Anchoring Loading Capacity of rebar to C30 concrete (designed value KN)

Consumption Chart

Packaging:

• One cartridge with one mixing nozzle in carton
• 12pcs/20pcs/30pcs per carton.
• Xinchor label or your own label.
• EXP Date on the top of cartridge.
• Customized Packing.

Our main product series:

-- Chemical Anchor series
Pure Epoxy Adhesive 360ml (5:1) 390ml(3:1) 585ml (3:1)

-- Carbon fiber reinforcement system,
XQ-XW carbon fiber epoxy adhesive
XQ-XB concrete surface leveling epoxy adhesive
XQ-CFC carbon fiber fabric 12K unidirectional 200gsm-600gsm

-- Steel bonding reinforcement system
XQ-JGN structural epoxy adhesive
XQ-GZ Grouting epoxy adhesive
XQ-FB edge sealing adhesive

-- Concrete repair system
XQ-GF crack grouting adhesive
XQ-FF crack sealing adhesive

Established in 2005, Zhejiang Xinchor Technology Co., Ltd. Focuses on research, development, production and marketing for building reinforcement materials and chemical anchoring adhesive.

Our Headquarter and marketing center located in West Lake Technological Park in Hangzhou, only 2 hours driving from Shanghai Pudong Airport, as well as we have sales branches throughout China, we passed ISO9001-2008 certificate in 2010.

As the earliest reinforcement material providers, we have our products wide range applied to high-speed railway, nuclear power station, bridge, tunnel, subway, municipal and civil buildings, and maintain a long-term cooperative relationship with a number of well-known construction companies. As a professional manufacturer of reinforcement materials, with company spirit of "quality first, integrity management" purposes, we can provide good quality products for building and industry at home and abroad.

You are welcome to contact us, we would be delighted to be of service, providing advice and professional building reinforcement solutions.
