Tech data for Carbon fiber CFRP sheet/plate/Laminates
Fiber type: Carbon
Mixing type: Epoxy resin
Color: Black
Primary Fiber Direction: unidirectional
Fiber Volume Fraction: 75%
Tensile Strength: 2400Mpa(350000psi)
Modulus of Elasticity: 131000Mpa
Elongation at break: 1.87%
Thickness: 1.2mm, 1.4mm, 2.0mm
Width: 10mm, 30mm, 50mm, 100mm

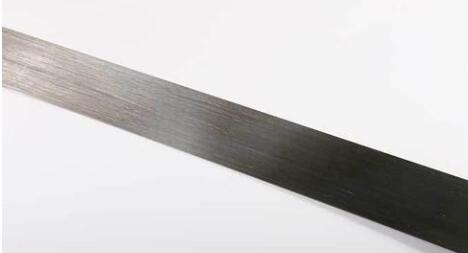

2.0mm Carbon Fiber Reinforced Polymer CFRP sheets for bridge
columns strengthening
CFRP Sheet/Plate is a high strength, pre-manufactured carbon/epoxy
laminate. These laminates are used as externally bonded
reinforcement providing additional strength and stiffness to
concrete, masonry, and wood structural elements. The laminates are
bonded to the structural element using two-part,
100% solids,high strength structural adhesive system.The resulting
repair is lightweight, non-corrosive and is much easier to install
than steel.
Prefabricated Carbon Fiber Reinforced Polymer (CFRP) Plates
For strengthening of concrete substrates, prefabricated CFRP plates
can be externally bonded or near surface-mounted. Sika offers a
wide range of carbon FRP plates in different dimensions and varying
E-modulus.
WHERE TO USE:
Structural Strengthening:
Increases the live load capacity of floor systems
Increases the flexural strength of reinforced and prestressed
girders
Increases the live load capacity and ductility of columns
Seismic Strengthening:
Masonry shear wall strengthening
Damage to Structural Parts:
Corrects strength deficiency due to deterioration and corrosion
Restores flexural strength of structural elements damaged by fire
Change in Structural System:
Load redistribution due to removal of walls or columns
Reinforces slabs for new openings
Design or Construction Defects:
Insufficient amount or detailing of flexural reinforcement
Insufficient size and/or layout of reinforcement
Features
1, high tensile strength, corrosion resistance, shock resistance,
good impact resistance;
2, light weight, good flexibility;
3, easy for handling and good quality assurance
4, good durability and corrosion resistance.
Main Performance
| Testing project | Index |
| High Strength Grade I |
| Tensile strength | ≥2400 MPa |
| Tensile modulus of elasticity | ≥1.7×105 MPa |
| Elongation | ≥1.6 % |
| Layer cutting strength | ≥50 MPa |
Cohesive pulling strength with base materials
| To concrete and brick materials, ≥2.5MPa based on cohesive damage To Steel, ≥3.5 no bonding damage
|
| Fabric content in volume | ≥65 % |
Remarks: all technical data are average values.
Quality & Service : our priority has always been providing our clients with great
quality products and superior customer service. |
Quick Lead : Time We're dedicated to providing the quickest turnaround times and
work very Hard to ensure that all of your deadlines are met. |
Unbeatable Prices: We continuously strive to find ways of reducing our production
costs, and passing the savings Over to you! |
Brand Awareness: The goal of any strong brand is achieve a level of awareness that
instills the idea of quality and value into all of your potential
customers. |
Special Offers: In order to maintain our competitive edge, we are constantly
running special offers on our promotion gifts, consumer goods, and
design services. Contact our sales team to see how we can help you
save a lot of money. |
Packing
Available carton package at 10sqm/carton.
Type 50mm width, 2rolls per carton;
Type 100mm width, 1roll per carton.
Transportation and storage
This product should be stored in dry, cool and well-ventilated
enviroment without rain, exposure or impact with sharp objects;
Carbon fiber materials transport and storage shall not be squeezed
to avoid carbon fiber damage, or direct sunlight and rain
Our Product Lines:
- Carbon Fiber Reinforcement System:
XQ-CFC 300gsm, 200gsm fabric and adhesives XQ-XW
- Steel Bonding System:
XQ-GZ Epoxy grouting adhesives,
XQ-JGN Plate bonding Adhesives
- Crack Repairing System:
XQ-GF Crack grouting adhesives,
XQ-FF crack seal adhesives
- Chemical Anchoring
390ml(3:1), 585ml(3:1), 650ml(1:1),
Our History:
15 years from 2000, ISO9001 approved, 40 employees, 5000m2 plant
Our Quality
All passed China National Standard lab testing, and be similar to
CE and other countries standards
.
