200gsm Unidirectional Cfrp Carbon Fiber Fabric For Columns
Strengthening

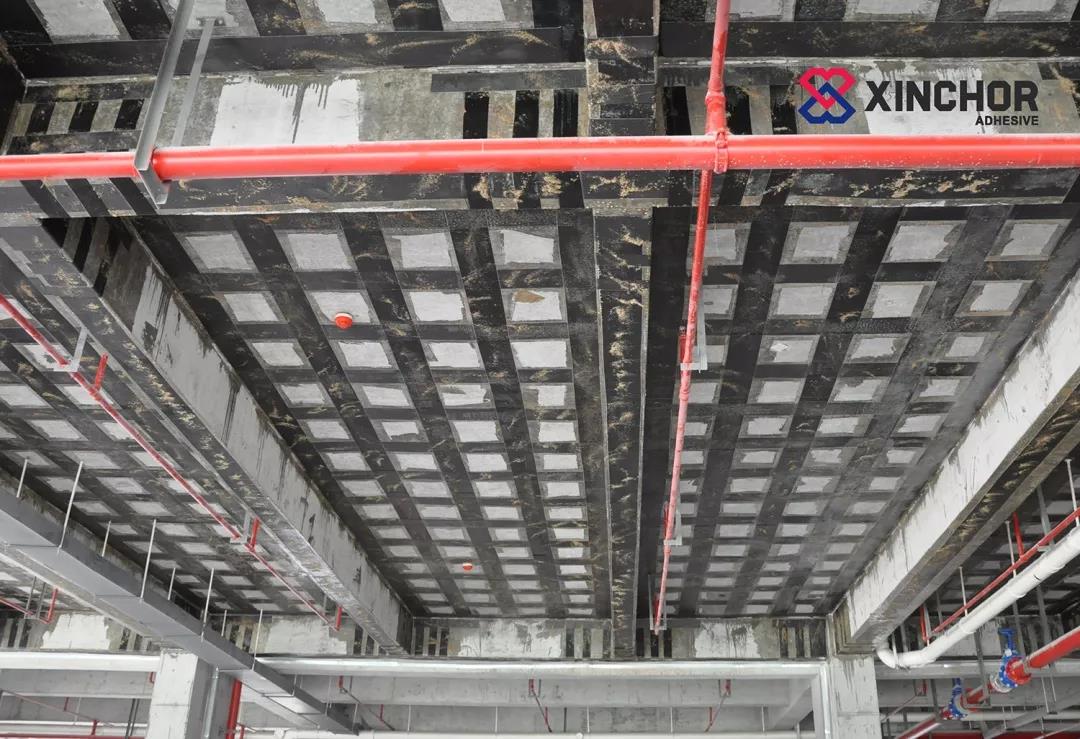

CFRP carbon fiber wrap for bridge, beam, columns
200gsm Unidirectional Cfrp Carbon Fiber Fabric For Columns
Strengthening
The most common CFRP systems for concrete strengthening
applications are carbon fiber based (CFRP). Carbon has superior
mechanical properties and higher tensile strength, stiffness, and
durability compared with glass fiber based systems. The use of
prefabricated CFRP bars and plates is typically limited to straight
or slightly curved surfaces; for example, the top side or underside
of slabs and beams. Prefabricated FRP elements are typically stiff
and cannot be bent on site to wrap around columns or beams.
Carbon fibre strengthening can be a cost effective, clean and
un-intrusive solution to a common structural problem. It isn’t
suitable for every strengthening project and you should always get
advice from a specialist contractor about the best method to use.
The primary benefit of CFRP systems versus traditional retrofit and
repair methods is that significant flexural, lateral, axial or
shear strength gains can be achieved with an easy-to-apply
composite that does not add significant weight or mass to the
structure of building, highway, bridge, tunnel.
Features:
• Easy installation
• Corrosion resistance
• Short construction period
• No maintenance required
Product performance
Weight: 200g/sqm
Thickness: 0.111mm
Density: 1.8g/cm³
Packing: 100 meters/roll
Width:100mm, 200mm, 300mm, 500mm or to be customized.
Main Performance According to China National Standard GB50728-2011
| Testing project | Standard |
| High Strength Grade I |
| Tensile strength | ≥3400 MPa |
| Tensile modulus of elasticity | ≥2.3×105 MPa |
| Elongation | ≥1.6 % |
| Bending Strength | ≥700 MPa |
| Layer cutting strength | ≥45 MPa |
Cohesive pulling strength with base materials
| To concrete and brick materials, ≥2.5 MPa
|
| Thickness | 0.111mm |
Remarks: all data are average values.
Storage Condition:Store dry at 40°-95° F(4° -35°)
Shelf Life: 50 years
Color:Black
Carbon Fiber Type: 0° (unidirectional)
Attention
1, carbon fabric cloth is conductive, please leave far away from
electrical equipment and power supply, or take reliable protection
2, carbon cloth bent should be avoided in the process
3, the surface should be clean and dry;
4, temperature theoretically should be 5-40 ℃
5, Processing in rain and outdoor is prohibited
6, If relative humidity is greater than 85% or condensation on the
concrete surface, Processing is not allowed;
7, Matched resin shall be stored sealed and away from fire and
direct sunlight.
8, The place of the formulation and use of resins should maintain
good ventilation;
9, on-site workers should take appropriate protection measures.
