390ml 3:1 Styrene Free Epoxy Bonded Anchor For Building
Rehabilitation
Chemical anchor adhesive, epoxy injection mortar, Chemical fixing
glue,
Chemical anchoring system used for anchoring and rebar connections
in concrete.
Item #: FixingChor139
Capacity: 390ml
Materials: Epoxy
Mixing Ratio: 3:1
Product Description:

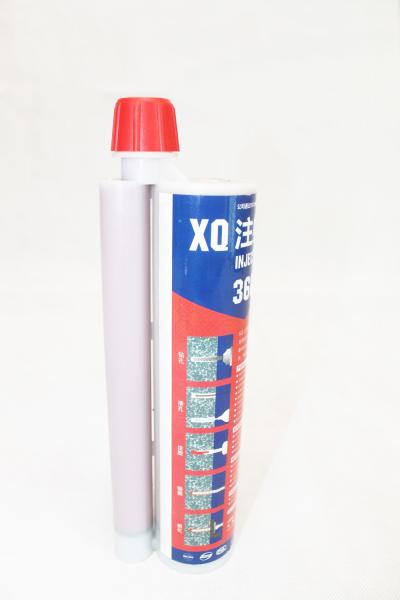

390ml 3:1 Styrene Free Epoxy Bonded Anchor For Building
Rehabilitation is
A two component chemical anchoring injection system.
Solvent-free, epoxy resin based, two part high performance
anchoring adhesive.
Used widely for
installations in extremely cold temperature situations.
A formulation derived from a special resin blend, with high bond
strength,
developed principally to anchor threaded rods into concrete.
Product Features
-The product ingredient is odorless and non-toxic.
-Orange color can be easily detected or monitored.
-Wide temperature range(5°C~+40°c)
-Styrene free.
-High grip force, high adhesive force.
-Longer working time.
-Designed for use with threaded rod and reinforcing bar hardware
elements.
-Special application to diamond drilled holes and large bore
diameter.
Application Range
For structural work:
Rebar / steel reinforcement anchoring in new and refurbishment
works.
Threaded rods
Bolts and special fastening systems
Fixing of the following substrates:
Concrete
Hard natural and reconstituted stone
Solid rock and masonry
Steel
Wood
Mechanical and electrical services installation
Anchoring of supports for ducting and equipment.
Metal Work, carpentry
Fixing of handrails, balustrades and supports
Fixing of railings
Fixing of window and door frames
Testing project | Condition | Index |
Gel Performance (According to China National Standard GB50728-2011) |
Splitting Tensile Strength (MPa) | Under (23±2)℃,(50±5)%RH, tested by loading speed of 2mm/min | ≥8.5 |
Flexural Strength (MPa) | ≥50 (no fragment damage) |
Compressive Strength (MPa) | ≥60 |
Bonding Capacity (According to China National Standard GB50728-2011) |
Steel-Steel Tensile Shear Strength (MPa) | (23±2)℃,(50±5)%RH | ≥10 |
Bonding strength of Ribbed steel bar (or screw) with concrete under
constrain drawing condition | (23±2)℃ (50±5)%RH | C30,Ф25,L=150mm | ≥11 |
C60,Ф25,L=150mm | ≥17 |
Steel-Steel T-peeling strength (mm) | (23±2)℃,(50±5)%RH | ≤25 |
Non-volatile content | (105±2)℃,(180±5)min | ≥99% |
Ageing resistance to heat and humidity 90d |
Reduction rate of tensile strength | Under normal room temperature | ≤12% |
(According to China National Standard JGJ145-2013) |
Tensile Strength (after high temperature welding) | Dia12 Grade II steel, C30 concrete Hole dia.16mm, Depth: 150mm | 55.1N, 57.0N, 54.8N |
